Our Products

Filtration Solutions Built for Industry

From standard housings to fully engineered systems, every product in our range is designed for long service life, reliable performance, and straightforward maintenance.

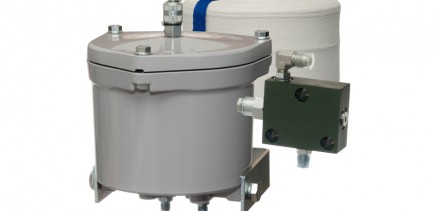

PFS Series

Precision Filter Cartridge Systems

The PFS Series is Precision Filtration Systems' flagship line of tightly wound long-fiber cartridge filter housings. Engineered for demanding industrial and process applications, the PFS60 and PFS100 deliver consistent sub-micron filtration with minimal pressure drop and extended service intervals.

PFS60 vs PFS100 — Side-by-Side Comparison

SpecificationPFS60PFS100
Max Flow Rate1 GPM1 GPM
Max Pressure130 PSI without Pressure Reduction Valve130 PSI without Pressure Reduction Valve
Max TemperatureExceeds regular oil and hose operating temps (approximately 250°F). Specialty high temp or aggressive fluids have to be approvedSame as PFS60
Filtration RatingParticulate contamination control to ISO 4406 - 14/9Same as PFS60
Dimensions (H x D)6.5 " x 7.5"6.5" x 9"
Housing MaterialsCast AluminiumCast Aluminium
Weight10 lbs15 lbs
Oil CapacityUp to 250 Gallons (Hydraulic)Up to 500 Gallons (Hydraulic) - per unit
Cartridge requiredPFC60PFC100
Best ForMobile fleet and small hydraulic systemsHigh-capacity hydraulic systems. Manufacturing.
Particle size damage thresholds diagram showing filter effectiveness from cheap filters to PFS 4 Stage Bypass Filter

ISO 4406 Cleanliness Standards

Understanding particle count classifications helps determine the right filtration solution for your system.

Standards Table of ISO 4406 Particle Counts and Size — showing cleanliness stages from Poor Factory Installed Filtration down to PFS 4 Stage Bypass Filtration System

Not sure which product fits your application?

Our team will review your requirements and recommend the right solution — no obligation.

Talk to us today
